Brief description:0.6mm Aluminum Foam Roller Shutters – Premium Security & Thermal Insulation Solu
Product
News

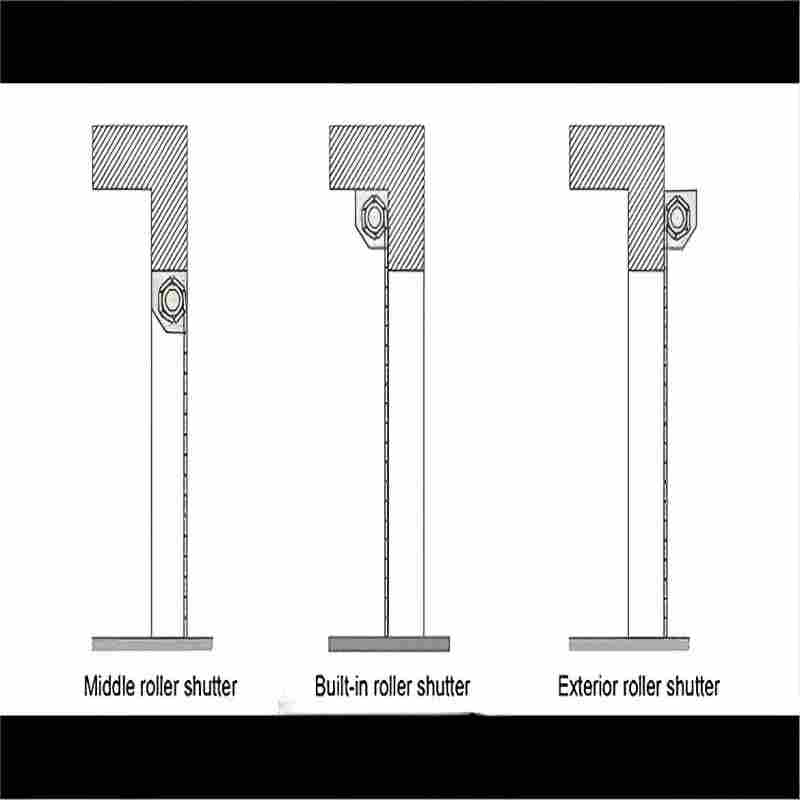

(As illustrated in the provided diagram, we offer three main installation types to suit various architectural requirements.)
Installation Type | Illustration | Suitable Applications |
|---|---|---|
Middle Roller Shutter | Shutter installed within the wall structure, tracks embedded in the wall | New constructions, pre-construction planning; provides a clean, integrated appearance |
Built-in Roller Shutter | Shutter fully recessed into the wall, completely concealed when open | Applications where a clean exterior façade is desired; offers hidden functionality |
Exterior Roller Shutter | Shutter mounted outside the wall, covering the window/door exterior | Renovation or retrofit projects; easy installation without structural modification |
0.6mm Aluminum Alloy Slats: 30% stronger than standard shutters, with improved impact resistance
Polyurethane Foam Filling: High-density foam core for thermal and acoustic insulation
Surface Finish: White ribbed texture, aesthetically pleasing and easy to maintain
Security Protection: Creates a physical barrier when closed, enhancing anti-theft performance
Thermal Insulation: Effectively reduces heat transfer, lowering HVAC energy consumption
Noise Reduction: Ideal for storefronts, garages, and noisy environments
Light & Privacy Control: Complete closure provides privacy and light blocking
Three installation types: Built-in, Middle, and Exterior
Customizable to various window and door dimensions
Precision track system for smooth, quiet operation
Manual or motorized operation available
Compatible with remote controls, smartphone apps, and timer systems
Can be integrated with security systems for automated operation
Parameter | Specification |
|---|---|
Material | 0.6mm aluminum alloy + polyurethane foam filling |
Surface Finish | Ribbed texture, white coating |
Thickness | Customizable, standard 8mm–12mm |
Operating Temperature | -30℃ to 70℃ |
Noise Reduction | 20–30 dB |
Thermal Insulation (K-value) | ≤ 2.5 W/(㎡·K) |
Wind Load Resistance | Meets relevant national standards |
Drive Options | Manual crank / Tube motor / External motor |
Storefronts & Shop Windows – Provides security when closed, retracts fully during business hours
Garages & Warehouse Doors – Lightweight, quiet, and insulating alternative to traditional metal doors
Residential Windows & Balconies – Offers sun shading, privacy, and energy savings
Office & Industrial Buildings – Improves indoor environment in large window or partition applications
On-site Measurement – Our technicians will visit to take precise measurements and recommend the best installation type
Solution Design – Customized design based on opening structure and environmental needs
Custom Manufacturing – Production according to your dimensions (lead time: 5–10 working days)
Professional Installation – Installation by experienced teams for secure and clean results
Testing & Handover – System testing, user instruction, and final inspection
Our roller shutter systems are compatible with motors and control systems from leading brands including GREE and Little Swan (as referenced in the provided image), offering reliable and smart operation to meet diverse user needs.
Available in custom colors to match your building’s exterior
Optional accessories: rain/light sensors, wind sensors, etc.
Full after-sales support including maintenance, repair, and spare parts
