Industrial Lift-Up Door

Industrial Lift-Up Door

Brief description:Industrial Lifting Door Product Introduction1. Product OverviewIndustrial Liftin

basic information

Product model

Industry-01

vendor nature

Producer

Release time

2026-01-14

page views

Product details

Industrial Lifting Door Product Introduction

1. Product Overview

Industrial Lifting Doors are intelligent door control systems specifically designed for modern factories, logistics warehouses, and special garages. The core concept is to meet basic access needs while maximizing space efficiency, energy saving, and safety. Our products can be customized with flexible installation solutions to accommodate different building structures, overhead pipes, and layout conditions, optimizing space utilization.

2. Key Features

2.1 Diverse Design Options

  • Windowless Design: Excellent overall sealing, ideal for locations with strict requirements for insulation, soundproofing, and dust prevention.

  • Windowed Design: Transparent observation windows (black polycarbonate frame with double-layer acrylic) integrated into the door body, enhancing indoor lighting and visibility.

  • Door-in-Door Design: A standard pedestrian door integrated into the main door, allowing daily access without opening the entire door, significantly improving convenience and reducing energy consumption.

2.2 Professional Installation Solutions

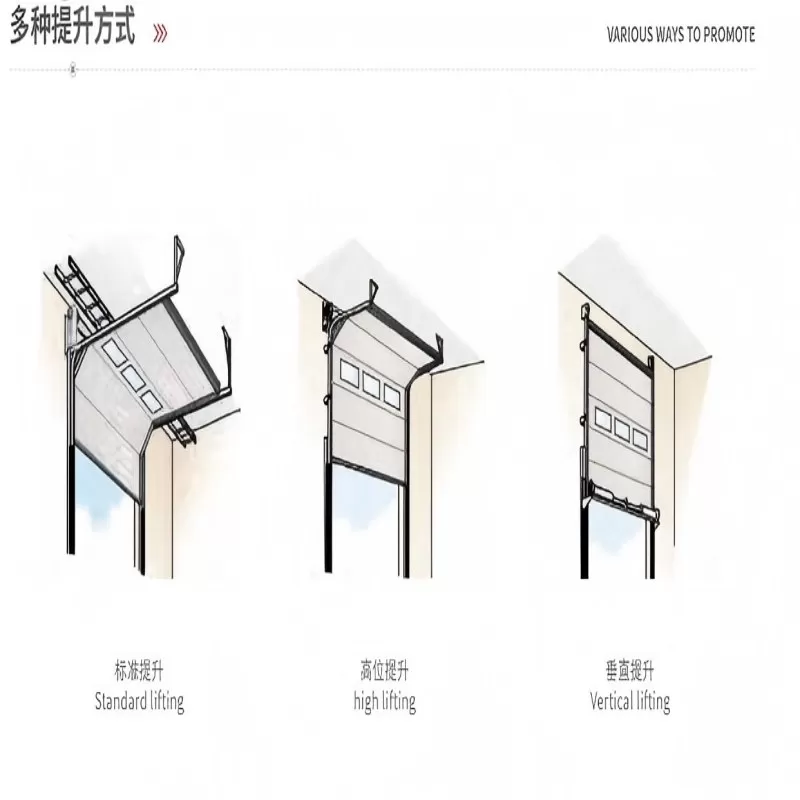

Three installation methods to suit different building structures:

  • Standard Installation: For conventional door openings.

  • High-Lift Installation: For door openings with ample overhead space.

  • Vertical Installation: For door openings with completely unobstructed space directly above.

3. Technical Specifications

Parameter

Specification

Size Range

Max. Width: 10,000mm
Max. Height: 6,000mm

Operation Speed

Opening: 0.12-0.25 m/s (adjustable)
Closing: 0.25-0.12 m/s

Drive System

Servo motor, ensuring smooth and precise operation.

Material & Craft

Guide Rail: 2.0mm galvanized steel plate
Door Panel: Embossed steel/aluminum sheet + non-fluorinated polyurethane foam filling

Wind Resistance

Resistant to Level 10 strong winds.

Control Modes

Remote control, push-button, ground induction loop, and more.

4. Multi-Layer Safety System

Industrial Lifting Doors feature comprehensive safety designs to ensure fail-safe operation.

Standard Safety Devices:

  1. Bottom Safety Edge: Door immediately reverses direction upon encountering an obstacle during descent, preventing crushing.

  2. Steel Cable Breakage Prevention Device: Automatically locks the door in place if the steel cable breaks unexpectedly, preventing a free fall.

  3. Wear-Resistant Sealing System: EPDM rubber seals on the top, sides, and bottom provide both sealing and cushioning.

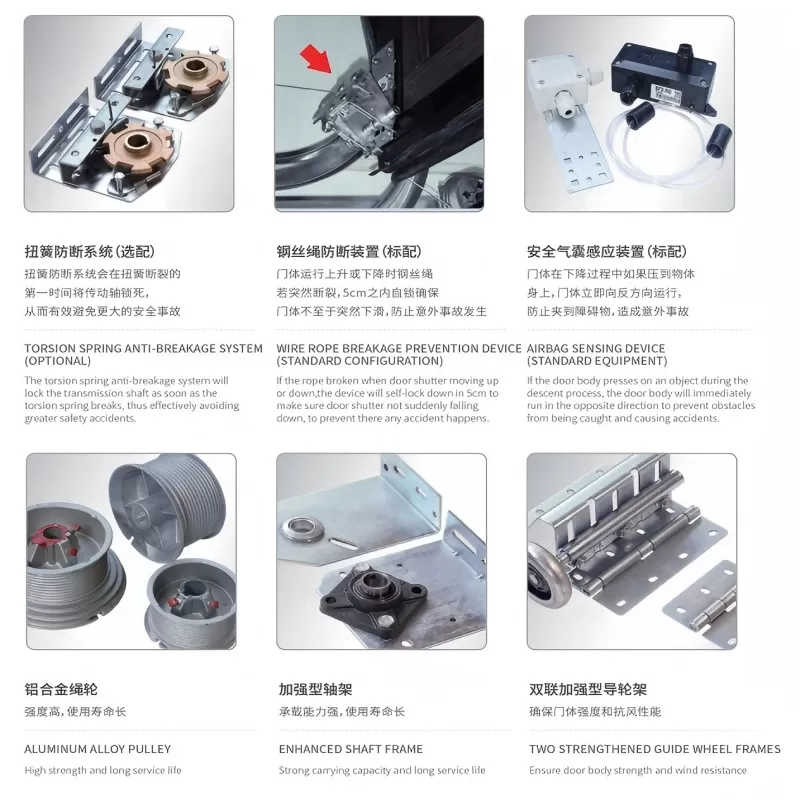

Optional Safety Enhancement Systems:

  1. Torsion Spring Anti-Breakage System (Optional): Instantly locks the drive shaft if the torsion spring breaks, preventing accidents.

  2. Reinforced Shaft Frame (Optional): High load-bearing capacity for extended service life.

  3. Aluminum Alloy Cable Pulley (Optional): High strength and wear resistance ensure long-term stable operation.

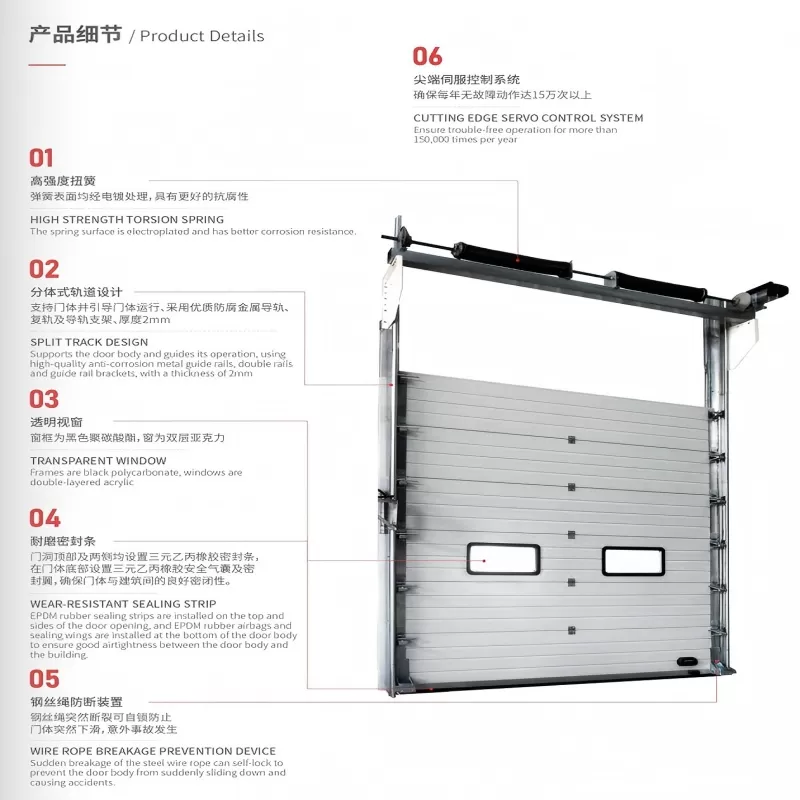

5. Detail-Oriented Craftsmanship

  1. High-Strength Torsion Spring: Surface treated via electromagnetic process for excellent corrosion resistance.

  2. Split Track Design: 2mm thick high-quality anti-corrosion metal guide rails with recovery rail and brackets for precise door guidance.

  3. Transparent Window: Double-layer acrylic material, offering good light transmission and high durability.

6. Application Scenarios

  • Various industrial plants and production workshops

  • Logistics, storage, and distribution centers

  • Special garages with high requirements for insulation and sealing

  • Environments with specific requirements, such as cold storage for food & pharmaceuticals

7. Product Value

Our Industrial Lifting Door series offers core advantages of "Space Saving, Easy Operation, Safety & Reliability, and Energy-Efficient Sealing." Through modular design and customized solutions, it meets the diverse needs of various industrial applications. Its excellent thermal insulation and sealing performance effectively reduce energy consumption, while the multi-layered safety system safeguards production security, making it the ideal choice for modern smart factories.

Guided by the principles of Simplicity, Sincerity, Responsibility, and Gratitude, we provide reliable door control solutions.
